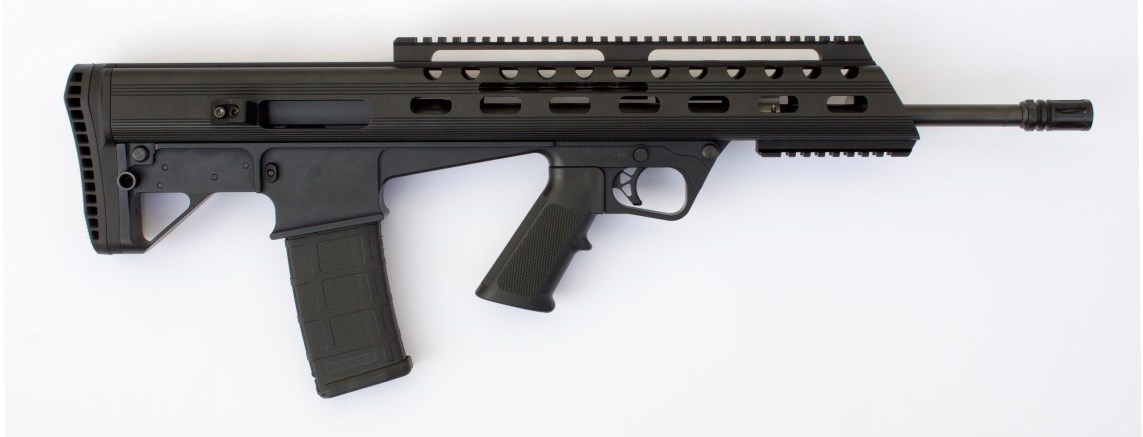

Model: M17S556

Production is in full swing and we are currently taking orders

price and Projected delivery dates for orders placed today are updated on the order page

















Specs:

Caliber: 5.56mm/.223
4.0lb to 5.0lb adjustable trigger pull with patented trigger linkage. (Something the bullpup industry is not known for )
Barrel Length: 17.5"
Barrel Twist: 1:8 Nitride treated is standard or a 1:9 on request.
Rail height to center bore 2 1/8"
Overall Length: 26.25" (Without Flash hider)
Weight: 7.4 LB
Short Stroke Piston System W/ adjustable gas system
Strong 3 Lug style bolt that is NP3 plated
Mil Spec type III Class 2 color black anodize, Cerakote options available for added cost.



Features:

Billet aluminum Lower 6000 series
Adjustable hammer assy with pull range from 4-5 lb without removing the assembly. There is also a heavier spring that can be installed in the disconnector area that will allow it to go up to 5.5lb.
Utilizes standard AR-15 magazine catch, grip, springs and pins.
Skeleton billet trigger
Magpul enhanced butt pad
Push button safety located right at your finger tip
2X QD sling adapters at the butt of the rifle
2X AR style takedown pins. (Uses standard AR takedown springs and detent)
AR180 style bolt carrier with a 3 lug triangular bolt that uses standard AR extractor and ejector parts. Guide rods and bolt are NP3 plated.
Uses Standard AR mags. (Comes with one magpul 30 rd mag)
Uses standard AR pistol grip that can be changed to use most all other AR grip.
Non reciprocating charging handle changeable to both sides of the receiver .
Standard AR Flash hider threaded 1/2-28
Ambi mag release that is a standard AR style
Optional modular side rails that can be mounted in any of the side slots
AR style bolt catch with last round hold open
Tactical flared magwell for quick magazine loading
